VALVES / BALL VALVES

TRUE UNION TYPE 21 CPVC/VITON

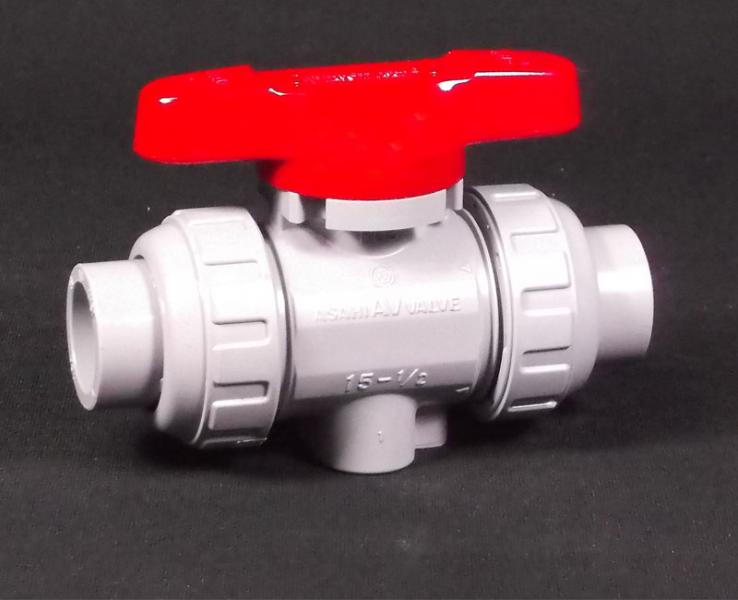

True Union Type 21 Ball Valve

The true union type 21 design is meant to provide easy installation and maintenance. Comes with both threaded and socketed ends. The pressure rating on Type 21 True union ball valves is 230PSI. Can be used with pneumatic or electric actuators.




Item Type Schedule Material Part # Size Full List Add to Quote QTY Subtotal
True Union Threaded CPVC / Viton 13032 .5 x x 109.45
True Union Soc Combo TYPE 21 CPVC / Viton 13033 .5 x x 109.45
True Union Threaded CPVC / Viton 13034 .75 x x 135.77
True Union Soc Combo TYPE 21 CPVC / Viton 13035 .75 x x 135.77
True Union Flanged TYPE 21 CPVC / Viton 13036 .75 x x 216.44
True Union Threaded CPVC / Viton 13037 1 x x 137.81
True Union Soc Combo TYPE 21 CPVC / Viton 13038 1 x x 165.17
True Union Flanged TYPE 21 CPVC / Viton 13039 1 x x 279.74
True Union Threaded TYPE 21 CPVC / Viton 13040 1.25 x x 247.07
True Union Soc Combo TYPE 21 CPVC / Viton 13041 1.25 x x 247.07
True Union Flanged TYPE 21 CPVC / Viton 13042 1.25 x x 400.21
True Union Threaded TYPE 21 CPVC / Viton 13043 1.5 x x 281.78
True Union Soc Combo TYPE 21 CPVC / Viton 13044 1.5 x x 281.78
True Union Flanged TYPE 21 CPVC / Viton 13045 1.5 x x 467.59
True Union Threaded TYPE 21 CPVC / Viton 13046 2 x x 390.00
True Union Socket TYPE 21 CPVC / Viton 13047 2 x x 390.00
True Union Flanged TYPE 21 CPVC / Viton 13048 2 x x 655.45
True Union Threaded TYPE 21 CPVC / Viton 13049 2.5 x x 759.58
True Union Soc TYPE 21 CPVC / Viton 13050 2.5 x x 759.58
True Union Flanged TYPE 21 CPVC / Viton 13051 2.5 x x 1137.33
True Union Threaded TYPE 21 CPVC / Viton 13052 3 x x 972.91
True Union Soc TYPE 21 CPVC / Viton 13053 3 x x 1027.07
True Union Flanged TYPE 21 CPVC / Viton 13054 3 x x 1317.30
True Union Threaded TYPE 21 CPVC / Viton 13055 4 x x 1665.99
True Union Soc TYPE 21 CPVC / Viton 13056 4 x x 1665.99
True Union Flanged TYPE 21 CPVC / Viton 13057 4 x x 2133.08

*Ontario Plastic Fabricators Inc. and MAS Precision Plastics Inc. will not assume liability for any information contained in this website.Pricing, Sizes, Photos and specifications may not be exactly as shown and are subject to change at any time. For accurate product pricing and specification please request a formal quotation.
