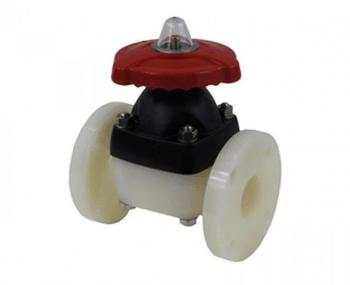

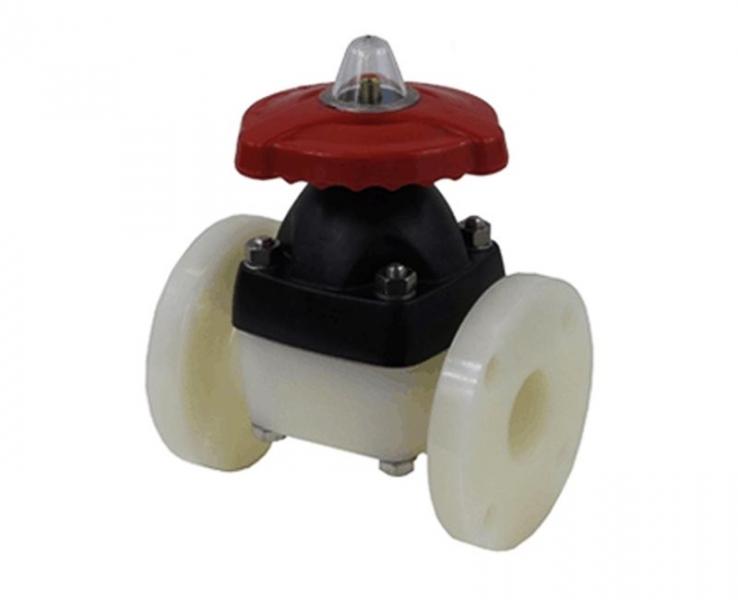

PVDF Diaphragm Valve

The PVDF Diaphragm Valve is suitable for slurries or viscous media and is a superb throttling valve. The PVDF Diaphragm valve is suited more aggressive chemicals than all other Diaphragm Valves. With its self draining design and no dead volume, the Diaphragm valve is great for sanitary purposes. The Diaphragm valve offers high temperature and pressure ratings as well as a design that effectively eliminates leakage.

Disclaimer

*Ontario Plastic Fabricators Inc. and MAS Precision Plastics Inc. will not assume liability for any information contained in this website.Pricing, Sizes, Photos and specifications may not be exactly as shown and are subject to change at any time. For accurate product pricing and specification please request a formal quotation.

Item	Type	Schedule	Material	Part #	Size	Full List	Add to Quote	QTY	Subtotal
Diaphram	Flanged		PVDF/Teflon	13289	.5 x x	900.00
Diaphram	Threaded		PVDF/Teflon	13290	.75 x x	0.00
Diaphram	Flanged		PVDF/Teflon	13291	.75 x x	0.00
Diaphram	Threaded		PVDF/Teflon	13292	1 x x	844.18
Diaphram	Flanged		PVDF/Teflon	13293	1 x x	1057.04
Diaphram	Threaded		PVDF/Teflon	13294	1.5 x x	1248.13
Diaphram	Flanged		PVDF/Teflon	13295	1.5 x x	1567.41
Diaphram	Threaded		PVDF/Teflon	13296	2 x x	1584.35
Diaphram	Flanged		PVDF/Teflon	13297	2 x x	1976.20
Diaphram	Flanged		PVDF/Teflon	13298	2.5 x x	2856.66
Diaphram	Flanged		PVDF/Teflon	13299	3 x x	3599.25
Diaphram	Flanged		PVDF/Teflon	13300	4 x x	5142.47
Diaphram	Flanged		PVDF/Teflon	13301	6 x x	9999.99
Diaphram	Flanged		PVDF/Teflon	13302	8 x x	9999.99
Diaphram	Flanged		PVDF/Teflon	13303	10 x x	9999.99
True Union Diaphr	Butt		PVDF/Teflon	13308	.5 x x	587.78
True Union Diaphr	Butt		PVDF/Teflon	13313	.75 x x	0.00
True Union Diaphr	Butt		PVDF/Teflon	13318	1 x x	982.05
True Union Diaphr	Butt		PVDF/Teflon	13323	1.5 x x	1463.40
True Union Diaphr	Butt		PVDF/Teflon	13328	2 x x	1855.26
