LIQUID STORAGE AND PROCESS TANKS / CUSTOM TANKS

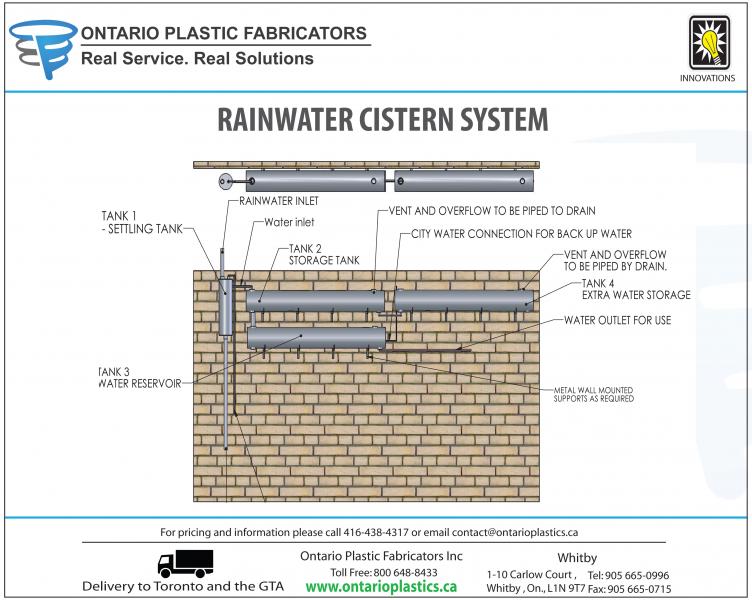

Rainwater Cistern System (COMMERCIAL/INSTITUTIONAL INDOOR USE)

TANK 1 - SETTLING TANK - This tank receives the rainwater from the roof drain and allows any heavy solids to settle in the bottom of the tank. The overflow allows extra water to drain to the regular drain.

TANK 2 - STORAGE TANK - This tank stores water from the settling tank and extra tanks can be mounted  along the wall or above each other .

TANK 3 - WATER RESERVOIR - This tank stores water for use and will maintain aminimum water capacity of 50 % of  the tank capacity. External water ( city , well )  pressure is connected to this tank to allow the tank to refill when the tank capacity drops below 50% .

• RAINWATER TO BE STORED AND USED FOR NON POTABLE APPLICATIONS
• USED FOR TOILETS, IRRIGATION, WASHING , ETC.
• 3 TANK SYSTEM WITH  EXTERNAL WATER BACK UP
• WALL MOUNTED HORIZONTALLY FOR EVEN WEIGHT DISTRIBUTION
• MOUNTED  TOWARD ROOFLINE TO MAXIMIZE HEAD PRESSURE
• PRESSURE PUMP CAN BE ADDED AS AN OPTION
• EASILY INSTALLED
