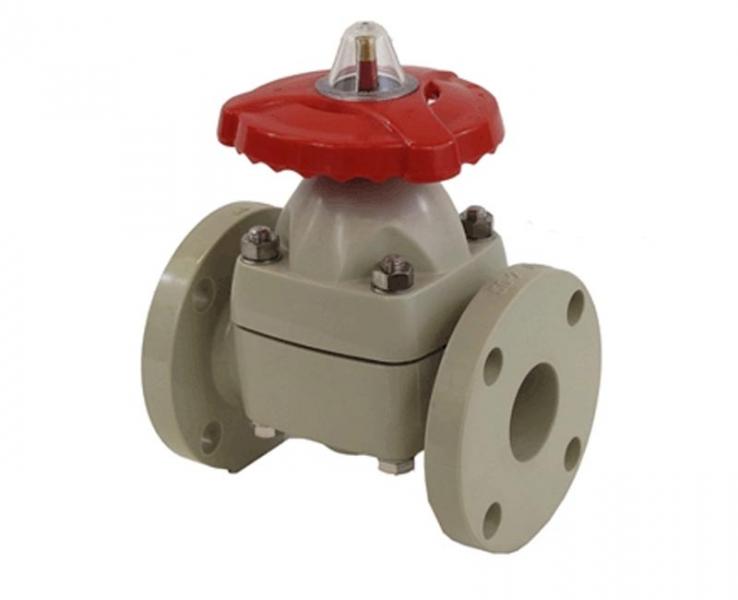

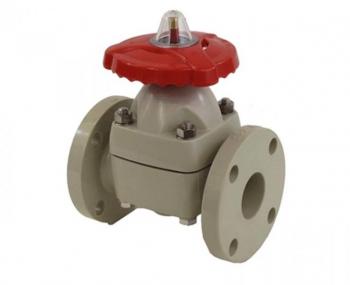

Polypropylene Diaphragm Valve

The Polypropylene Diaphragm Valve is suitable for slurries or viscous media and is a superb throttling valve. The Polypropylene Diaphragm valve is suited more aggressive chemicals than most other Diaphragm Valves. With its self draining design and no dead volume, the Diaphragm valve is great for sanitary purposes. The Diaphragm valve offers high temperature and pressure ratings as well as a design that effectively eliminates leakage.

Disclaimer

*Ontario Plastic Fabricators Inc. and MAS Precision Plastics Inc. will not assume liability for any information contained in this website.Pricing, Sizes, Photos and specifications may not be exactly as shown and are subject to change at any time. For accurate product pricing and specification please request a formal quotation.

Item	Type	Schedule	Material	Part #	Size	Full List	Add to Quote	QTY	Subtotal
Diaphragm	Flanged		POLYPRO/teflon	13265	.5 x x	744.50
Diaphragm	Flanged		POLYPRO/EPDM	13266	.75 x x	551.31
Diaphragm	Flanged		POLYPRO/Teflon	13267	.75 x x	786.91
Diaphragm	Flanged		POLYPRO/EPDM	13268	1 x x	590.20
Diaphragm	Flanged		POLYPRO/Teflon	13269	1 x x	887.72
Diaphragm	Flanged		POLYPRO/EPDM	13270	1.5 x x	909.49
Diaphragm	Flanged		POLYPRO/Teflon	13271	1.5 x x	1318.27
Diaphragm	Flanged		POLYPRO/EPDM	13272	2 x x	1078.81
Diaphragm	Flanged		POLYPRO/Teflon	13273	2 x x	1606.12
Diaphragm	Flanged		POLYPRO/EPDM	13274	2.5 x x	1514.20
Diaphragm	Flanged		POLYPRO/Teflon	13275	2.5 x x	2244.69
Diaphragm	Flanged		POLYPRO/EPDM	13276	3 x x	1739.15
Diaphragm	Flanged		POLYPRO/Teflon	13277	3 x x	2776.84
Diaphragm	Flanged		POLYPRO/EPDM	13278	4 x x	2549.47
Diaphragm	Flanged		POLYPRO/Teflon	13279	4 x x	3913.70
Diaphragm	Flanged		POLYPRO/EPDM	13280	5 x x	3756.47
Diaphragm	Flanged		POLYPRO/Teflon	13281	5 x x	6692.95
Diaphragm	Flanged		POLYPRO/EPDM	13282	6 x x	5130.38
Diaphragm	Flanged		POLYPRO/Teflon	13283	6 x x	8666.73
Diaphragm	Flanged		POLYPRO/EPDM	13284	8 x x	9793.92
Diaphragm	Flanged		POLYPRO/Teflon	13285	8 x x	9999.99
Diaphragm	Flanged		POLYPRO/EPDM	13286	10 x x	9999.99
Diaphragm	Flanged		POLYPRO/Teflon	13287	10 x x	9999.99
True Union Diaphragm	Butt		PP/Teflon	13307	.5 x x	602.29
True Union Diaphragm	Butt		PP/EPDM	13311	.75 x x	0.00
True Union Diaphragm	Butt		PP/Teflon	13312	.75 x x	0.00
True Union Diaphragm	Butt		PP/EPDM	13316	1 x x	558.75
True Union Diaphragm	Butt		PP/Teflon	13317	1 x x	844.18
True Union Diaphragm	Butt		PP/EPDM	13321	1.5 x x	853.85
True Union Diaphragm	Butt		PP/Teflon	13322	1.5 x x	1245.71
True Union Diaphragm	Butt		PP/EPDM	13326	2 x x	1006.24
True Union Diaphragm	Butt		PP/Teflon	13327	2 x x	1519.04
